Aura, Elixir, Altus, and Zia.
Hard Shell HBOT cocoon®
Premium chamber formats for homes, clinics, hotels, and multiplace wellness spaces.
Select your preferred HBOT cocoon®
By comfort and accessibility.
Engineered for safety, performance, and precision, the HBOT cocoon® by O2genes sets a high standard in hyperbaric oxygen therapy. It is built with advanced safety systems—including emergency exits, grounded electrical protection, and Air-Break™ Technology—to effectively minimize oxygen toxicity risks.
Unlike generic chambers on the market, our protocols are personalized using science-backed methodologies developed by our founder, Dr. Josh. Additionally, the HBOT cocoon® is specially constructed to excel in high heat and humidity, completely eliminating overheating, condensation, and leakage risks.
Individual through multiplace configurations.
ATA, subject to the selected configuration.
± 3% across the available models.
Choose your Hard Shell HBOT cocoon®.
01 / 04
01 / 1 pax · seated

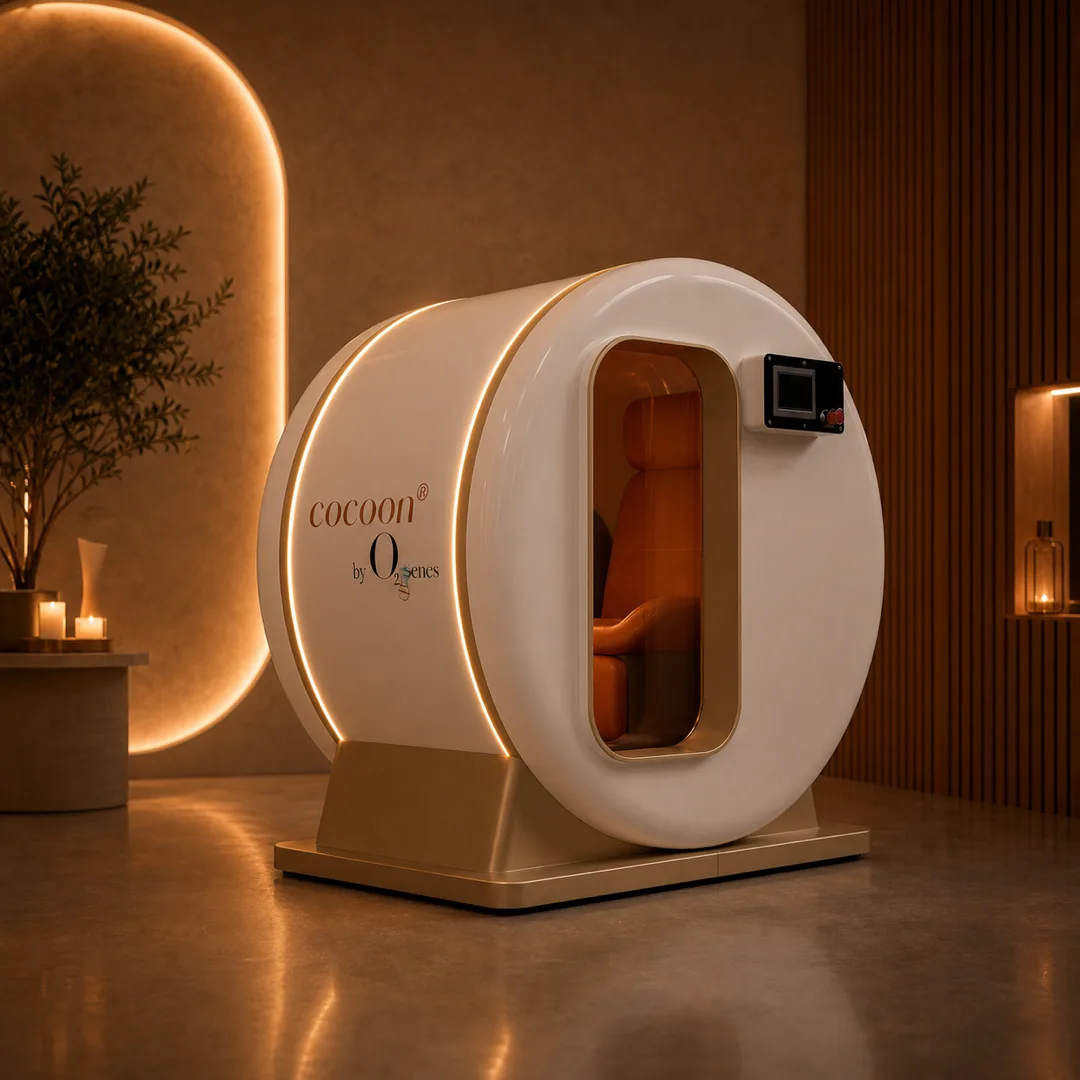

Aura Hard Shell HBOT cocoon®
Elegant and classic: a compact Hard Shell HBOT cocoon® chamber thoughtfully sized for one adult. Suited to homes and boutique wellness spaces that need comfort and performance without a large footprint. Two- and four-person Aura configurations are also available.
- Recommended capacity: 1 person
- Maximum capacity: 4 people across available Aura configurations
- Mode: Seated
- Space needed: 2 m × 2.5 m
View HBOT cocoon® specifications
- Recommended capacity
- 1 person
- Maximum capacity
- 4 people across available Aura configurations
- Mode
- Seated
- Space needed
- 2 m × 2.5 m
- Maximum pressure up to
- 1.99 ATA
- External dimensions
- 1650 × 1450 × 1660 mm (L × W × H) · 720 kg for the 1-person model
- Oxygen flow
- 10 L/min for the 1-person model
- Power / installation
- 220–240 V · 4.5 kVA for the 1-person model
02 / 2 pax · seated

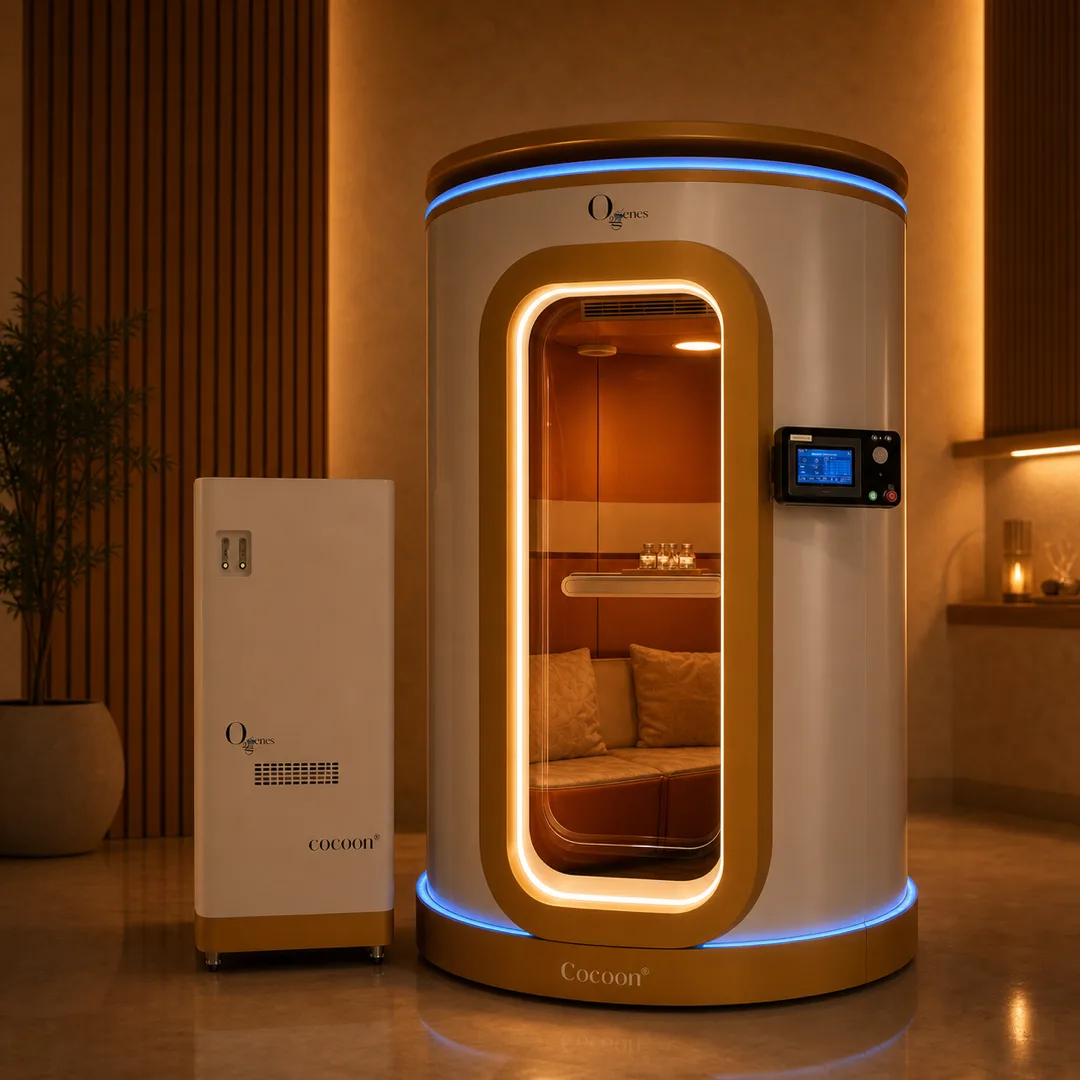

Elixir Hard Shell HBOT cocoon®
Our signature Hard Shell HBOT cocoon® and flagship two-person chamber. Elixir balances elegant design, advanced engineering, and exceptional comfort, with an architectural silhouette suited to longevity clinics, wellness centres, luxury hotels, and private residences.
- Recommended capacity: 2 people
- Maximum capacity: 2 people
- Mode: Seated together
- Space needed: 2.5 m × 2.5 m
View HBOT cocoon® specifications
- Recommended capacity
- 2 people
- Maximum capacity
- 2 people
- Mode
- Seated together
- Space needed
- 2.5 m × 2.5 m
- Maximum pressure up to
- 1.99 ATA
- External dimensions
- 1800 × 1800 × 2200 mm (L × W × H) · 930 kg
- Oxygen flow
- 20 L/min
- Power / installation
- 220–240 V · 7.5 kVA
03 / 4 pax · multiplace

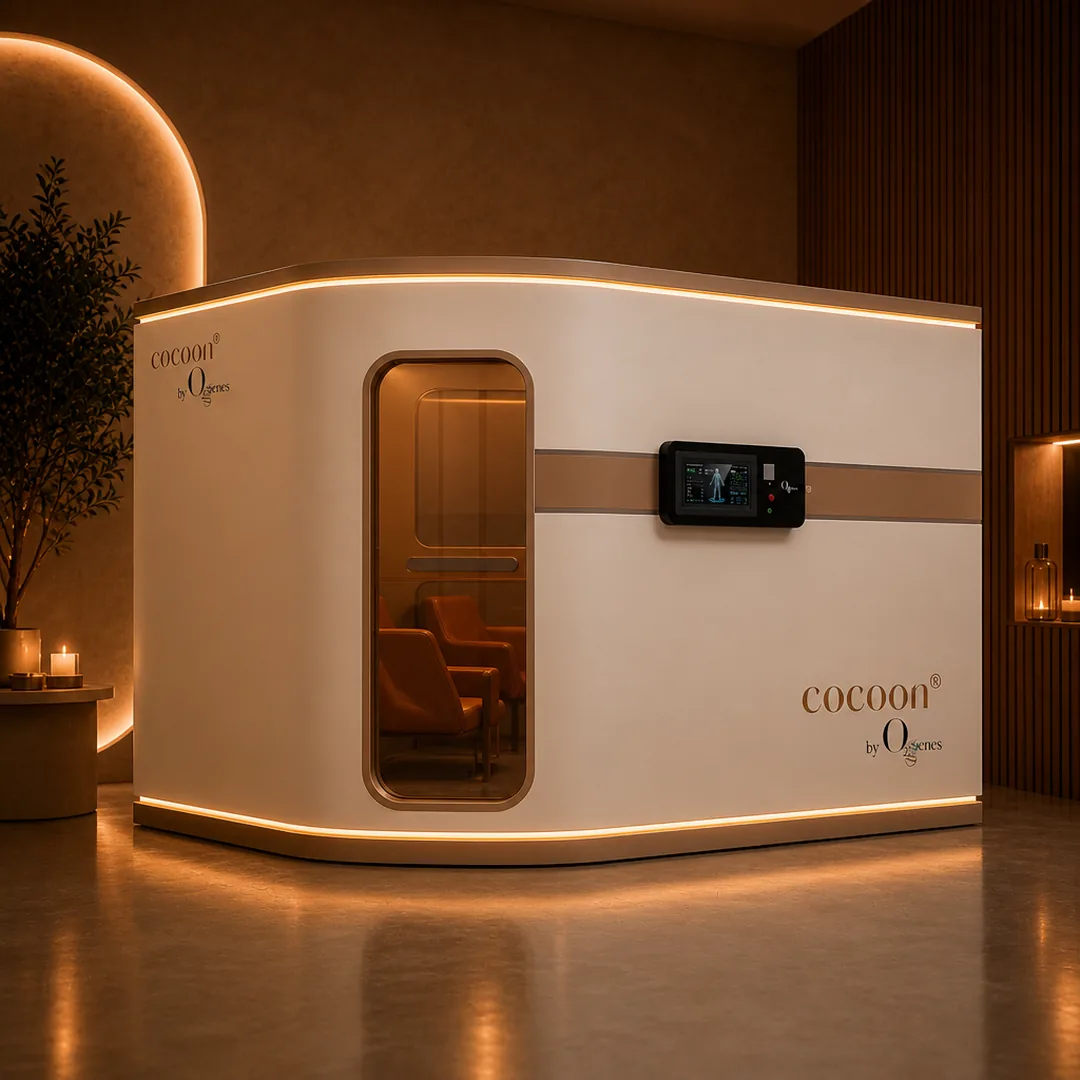

Altus Hard Shell HBOT cocoon®
Spacious and luxurious: the expansive multiplace Hard Shell HBOT cocoon® for shared wellness settings. Refined finishes and a seated multiplace position support the primary four-person format, with two- and six-person configurations available for different operating needs.
- Recommended capacity: 4 people
- Maximum capacity: 6 people across available Altus configurations
- Mode: Seated / multiplace
- Space needed: 3.5 m × 3.5 m
View HBOT cocoon® specifications
- Recommended capacity
- 4 people
- Maximum capacity
- 6 people across available Altus configurations
- Mode
- Seated / multiplace
- Space needed
- 3.5 m × 3.5 m
- Maximum pressure up to
- 1.99 ATA
- External dimensions
- 2460 × 1960 × 2200 mm (L × W × H) · 2600 kg for the 4-person Wellness BIBS model
- Oxygen flow
- Confirm for the selected BIBS configuration
- Power / installation
- 20 kW for the 4-person Wellness BIBS model; dedicated cabinet, chiller, and clearance required
04 / 1 pax · lie-down

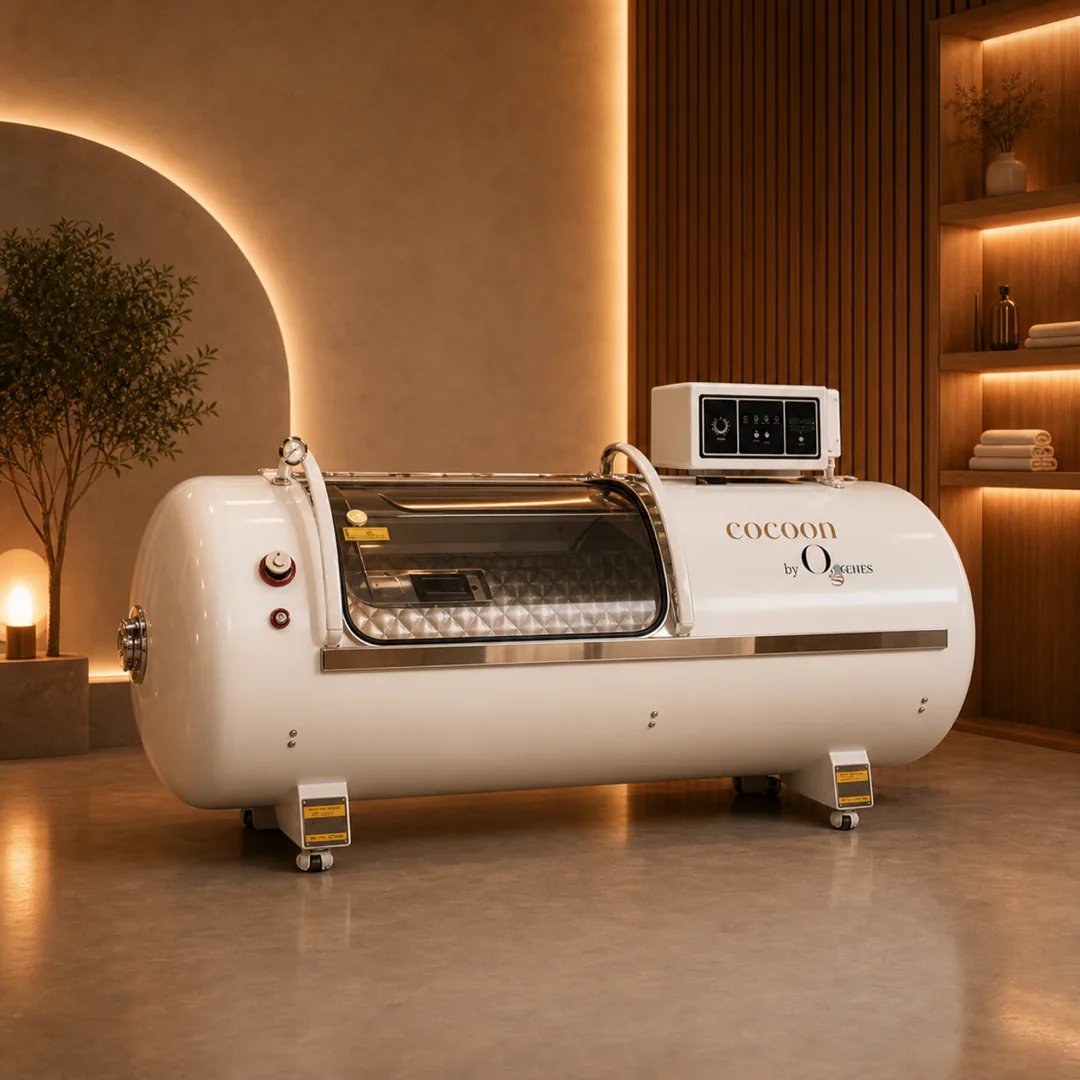

Zia Hard Shell HBOT cocoon®
A dedicated one-person horizontal Hard Shell HBOT cocoon® with a 304 stainless-steel body and wide viewing panel. Its long, low form and lighter main chamber suit projects that prefer a lie-down posture within the Hard Shell HBOT cocoon® series.
- Recommended capacity: 1 person
- Maximum capacity: 1 person
- Mode: Horizontal / lie-down
- Space needed: 3 m × 2 m
View HBOT cocoon® specifications
- Recommended capacity
- 1 person
- Maximum capacity
- 1 person
- Mode
- Horizontal / lie-down
- Space needed
- 3 m × 2 m
- Maximum pressure up to
- 1.99 ATA
- External dimensions
- Approx. 2500 × 800 × 800 mm (L × W × H) · 150 kg
- Oxygen flow
- 10 L/min · 93% ± 3%
- Power / installation
- AC 220–240 V · 7.5 kVA; confirm the full installed envelope
The complete Hard Shell HBOT cocoon® system.
In-House Engineering Support
Professionally trained engineers to support service & technical assistance.
Proprietary HBOT Protocols
Designed by Dr. Josh based on science-backed research studies.
Safety Standards
Built-In Safety Features similar to that of HBOT Research Standards. Our HBOT cocoons include critical safety features such as emergency exit functionality, grounding, safe electrical systems and Air-Break™ Technology to prevent oxygen toxicity.
Engineered for Lasting Performance
Engineered from carbon steel, up to 3X hardier than aluminum. Our HBOT cocoon® is able to withstand extreme pressure fluctuations, and is built to last.
Designed for our Tropical Climate
Our HBOT cocoons are specifically designed to operate reliably in hot and humid environments. In contrast, chambers from overseas are not optimized for tropical conditions. Hence, they are often more susceptible to overheating, condensation, and leakage over time.
Regular Software Updates
Continuous software updates to provide your clients with the latest features and user experience.
Before you enquire
Nine answers before installation.
How long is the HBOT cocoon®'s lifespan?
Much like a car, it depends on your frequency of use and regular maintenance.
Can we rent a Hard Shell HBOT cocoon®?
Due to logistical challenges, the Hard Shell HBOT cocoon® is available for purchase only.
Where is our HBOT cocoon® made?
Our HBOT cocoons are proudly designed and assembled in Singapore.
What equipment comes with the HBOT cocoon®?
Each Hard Shell HBOT cocoon® system includes three pieces of equipment: the main HBOT cocoon®, an air-conditioning unit, and a PSA oxygen concentrator. Because the concentrator generates oxygen from room air rather than tanks, there are no consumables.
What is the lead time to order an HBOT cocoon®?
The estimated lead time is approximately 2 to 4 months, depending on the level of customisation and where you are based.
Is the HBOT cocoon® customizable?
Yes. Our HBOT cocoons can be customised based on your requirements. Customisations include the colours, interior configuration, and your logo on the HBOT cocoon®.
How does the oxygen concentrator work with the HBOT cocoon®?
The oxygen concentrator uses pressure swing adsorption (PSA) to separate nitrogen from ambient room air and deliver a continuous stream of 93% ± 3% oxygen into the HBOT cocoon®.
Do I have to wear an oxygen mask inside the HBOT cocoon®?
The chamber is pressurized, but the ambient air inside remains at a standard oxygen level. You breathe enriched oxygen through a delivery mechanism such as a headset, mask, nasal cannula, or BIBS system, depending on the model.
Are there any special electrical requirements?
Yes, please reach out to our team for the detailed specifications according to your preferred HBOT cocoon® model.
O2genes showroom
Try Hard Shell HBOT cocoon® before you decide.
Step inside, compare seating and capacity, and discuss room, access, and installation requirements with the O2genes team.
